Disk Partitions and Drive Lettering

1. Hard Drive Overview
2. Master Boot Record, the MBR
3. MBR Structure
4. DOS Partitions
5. MBR Partitions
6. MBR Format
7. MBR Example with Two Partitions
8. MBR and Partition Table Entries
9. Disk Layout Example
10. Boot Code
11. Extended Partitions
12. Six Partitions Example
13. Drive Letters
14. Assigning Drive Letters
15. Drive Letter Assignment Example
16. File Systems Recognized by DOS and Windows
17. Disk Operating System, DOS
18. Windows 9x/Me
19. UNIX
20. Linux
21. OS/2
22. Mac OS
23. Apple Partitioning System
24. Other Partition Types
25. GPT Partitions
26. GPT Partitions, cont.
27. GPT Partitions, cont.
28. What an Operating System Does
29. Partitions and Logical Drives Summary

1. Hard Drive Overview

• Hard Drive =

  • tracks 0, 1, 2, 3, ...

    • segments: sectors 1, 2, 3, ...

• Cluster =

  • smallest unit of storage on disk; contains 1 or more sectors

• First Sector =

  • Master Boot Record, the MBR.



2. Master Boot Record, the MBR

• If hard drive is listed as the boot device, the BIOS looks for the MBR.

• MBR maintains information about the physical hard drive structure:

  • total number of sectors

  • number of sectors per cluster

  • etc.

• MBR also contains

  • Boot Program Code

  • Partition Table



3. MBR Structure

• Master Boot Record (MBR) is found on each physical disk on sector 1, contains:

  1. Boot Code (Program)

  2. Partition Table: can have up to 4 partitions (one extended)

4. DOS Partitions

• Most commonly found partition type on Intel IA32 hardware (i.e., 16- and 32-bit i386/x86 architecture)

• A lot of documentation but no standard reference...

  • ...commonly called Master Boot Record (MBR) partition system

• Intel IA64 hardware (i.e., 64-bit Itanium) uses Globally Unique Identifier (GUID) Partition Table (GPT) format



5. MBR Partitions

• The MBR occupies the first 512 B sector

  • Contents include boot code, partition table, and signature

• Partition table can address up to four partitions

  • Each table entry includes type of partition and location on the medium



6. MBR Format

• ^(*) See partition types document for list of PC partition codes.

7. MBR Example with Two Partitions

8. MBR and Partition Table Entries

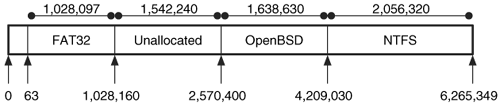

9. Disk Layout Example

10. Boot Code

• The boot code (located in bytes 0-445 of the MBR) processes the partition table and identifies which partition to boot from.

  • First sector in active (bootable) partition is the boot sector, which has the next step of the boot information.

  • Boot sector code is, therefore, operating system-specific.

• Handling multiple operating systems

  • Windows lets MBR execute and point to Windows bootable code, which lets users select OS

  • Can also replace the MBR boot code to provide the user with a list of choices (e.g., LILO)



11. Extended Partitions

• If more than four partitions are required, the fourth table entry points to a Primary Extended Partition (PEP)

  • MBR points to three Primary File Systems plus the PEP

• PEP points to a Secondary File System and a Secondary Extended Partition (SEP)

  • SEP points to additional Secondary File System or Secondary File System/Extended Partition pair

• Extended partitions essentially form a linked list to all of the needed file systems



12. Six Partitions Example

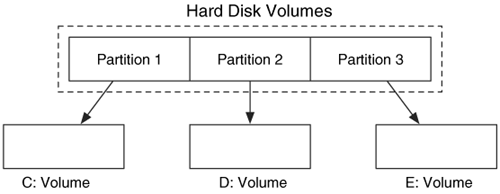

13. Drive Letters

• Drive letters are unique to DOS and Windows

• Drive letters will only be assigned to recognizable file systems

  • Not all file systems are known to all OSes...

    • ...which provides a way to hide a partition on a disk...

• Drives A: and B: are reserved for floppy disks

  • Letters C: through Z: may be assigned.

• Knowing this is particularly useful when configuring a DOS/Windows system. For example, a user workstation will probably have

  • its own system hard drive,

    • another drive for user data, and

    • possibly more drives for data and backups.



14. Assigning Drive Letters

• Letters are assigned in the following order:

  1. First primary partition on the drive(s)

     • Preference given to the active partition, if there is one.

  2. Logical drives in the Primary Extended Partition(s), if present, in the order of physical location on the drive.

  3. Remaining primary partitions, in order found in MBR.

  4. Peripheral devices, such as CD-ROM, DVD, and thumb drives.





15. Drive Letter Assignment Example

16. File Systems Recognized by DOS and Windows

17. Disk Operating System, DOS

• The first OS used by IBM computers/compatibles

• Where DOS can still be found:

  • Specialized systems using older applications

  • On troubleshooting floppy disks or CDs

  • DOS is the OS of Windows 3.x:

    • Windows 3.x provided a graphical interface

    • Underlying OS functions were performed by DOS

  • Windows 9x/Me uses DOS in the underlying OS

• Windows XP/2000 run DOS emulation programs

18. Windows 9x/Me

• Refers to Windows 95, Windows 98, Windows Me

• Combine a DOS core with graphical user interface, GUI

• Designed to bridge legacy and newer technologies

• Backward-compatible with older systems

• Cautionary note on minimum requirements -

  • see Minimum and Recommended System Requirements for details.

19. UNIX

• Comprises a class of operating systems

• UNIX versions referred to as flavors or distributions

  • FreeBSD

  • NetBSD

  • OpenBSD

  • Sun Solaris

• Chief uses:

  • Controlling networks

  • Supporting Internet-based applications

20. Linux

• Variation on UNIX created by Linus Torvalds

• OS kernel and source code are freely distributed

• Popular distributions:

  • SuSE www.novell.com/linux/suse

  • RedHat www.redhat.com

  • TurboLinux www.turbolinux.com

• Used as both a server and a desktop

• X Windows: GUI shells for UNIX and Linux

21. OS/2

• Jointly developed by IBM and Microsoft

• Chiefly used in certain types of networks

• Part of OS/2 was incorporated into Windows NT

• OS/2 is not covered in our course

22. Mac OS

• First introduced in 1984 with Macintosh computers

• Current version: Mac OS X (ten)

• Mac OS X can work on Intel-based computers

• Growing Markets: education, desktop publishing, graphics

• Noteworthy features:

  • Support for graphics and multimedia capabilities

  • Use of the Finder program to provide the desktop

  • Superior Plug and Play capabilities

  • Excellent support for multitasking

• Mac OS X desktop is intuitive and easy to use

23. Apple Partitioning System

• Mac OS uses a single Partition Map in sector 0 to point to all partitions on drive

  • Partition Map indicates its own size

• Mac firmware processes the partition map, so that sector 0 does not contain boot code.



24. Other Partition Types

• Different systems use even other partition types, including these common systems

  • FreeBSD

  • NetBSD

  • OpenBSD

  • Sun Solaris

  • GPT: GUID Partition Table



25. GPT Partitions

• Guid Partition Table (GPT)

• The 64-bit Intel Itanium processors do not have a BIOS like 32-bit systems.

• They have a Extensible Firmware Interface.

• The EFI uses a partition system called the GUID partition Table that can support up to 128 Partitions and uses 64-bit LBA addresses.



26. GPT Partitions, cont.

• A GPT disk has five major areas:

  • First area is the Protective MBR:

    • starts in the first sector of the disk (sector-0)

    • contains one DOS partition

  • Second part starts at sector-1 and contains the GPT header. The header defines the size and location of the partition table.

  • Third section contains the partition table. Each entry contains a starting and ending address.

  • Fourth section is the partition area:

    • it is the largest area

    • contains sectors allocated to the partitions (logical disk volumes.)



27. GPT Partitions, cont.

• Fifth and final section of the disk contains a backup copy of the GPT header and partition table:



• GPT partitions are not frequently encountered during investigations. Forensic analysis tools are catching up on fully supporting the GPTs.



28. What an Operating System Does

• Four functions common to all operating systems:

  1. Providing a user interface

  2. Managing files

  3. Managing applications

  4. Managing hardware

• All OSs have similar core components

• Computer protection and security is based on core OS capabilities

29. Partitions and Logical Drives Summary

• Hard drives are organized into partitions

• Two types of partitions:

  • Primary: can only have one logical drive; e.g., C:\

  • Extended: can have one or more logical drives

• Logical drive (sometimes called a volume):

  • Formatted using a particular file system

  • Has a root directory and subdirectories

• Disk Management tools:

  • create/view partitions

  • format logical drives
