2. Segment Registers

  • Segment registers are basically memory pointers located inside the CPU.

  • Segment registers point to a place in memory where one of the following things begin:

    1. Data storage

    2. Code execution.



  •

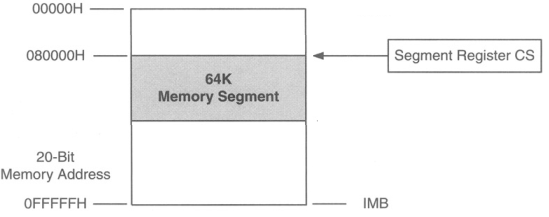

  • Example: code segment register CS points to a 64K region of memory:

      code segment register
