Binary files

1. I/O class hierarchy
2. Binary Files
3. OutputStream hierarchy, raw byte streams
4. DataOutputStream, OutputStream hierarchy
5. OutputStream hierarchy constructors
6. DataOutputStream, writing binary data
7. DataOutputStream: opening binary file for appending
8. Console output: writing byte array using OutputStream
9. DataOutputStream implements DataOutput interface
10. DataOutputStream methods
11. DataOutputStream, writing binary file
12. InputStream hierarchy, raw byte streams
13. DataInputStream, InputStream hierarchy
14. InputStream hierarchy constructors
15. DataInputStream, binary input stream
16. DataInputStream implements DataInput interface
17. DataInputStream methods
18. DataInputStream example: reading binary file
19. DataOutputStream: writing binary strings
20. DataOutputStream example: two ways to write a binary string
21. DataInputStream example: two ways to read a binary string
22. Creating writeable file with Files.newOutputStream( ) method
23. StandardOpenOption constants
24. Example: BufferedOutputStream, Files.newOutputStream( )

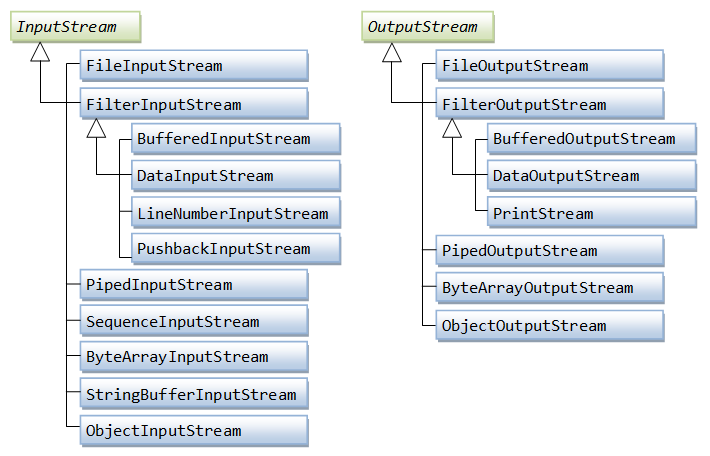

1. I/O class hierarchy

2. Binary Files

• A binary file stores data in the same format and with the same number of bytes as is used by that data when it is in the computer's memory:

  • int data is written in four bytes

  • double data is written in eight bytes

  • char data is written in two bytes

  • boolean data is written in one byte

  • and so on



3. OutputStream hierarchy, raw byte streams

4. DataOutputStream, OutputStream hierarchy

• Class java.io.DataOutputStream

  • defined in the java.io.OutputStream class hierarchy

  • DataOutputStream implements DataOutput interface

  • DataOutputStream writes primitive Java data types to an output stream in a portable way

  • the program can read the data back in using the DataInputStream object

• Attaching a binary output stream to a file invloves


      DataOutputStream        writes primitive Java data types to the stream
      BufferedOutputStream    creates a buffer for the stream
      FileOutputStream        connects the stream to a file





5. OutputStream hierarchy constructors

• Constructors of the classes in the OutputStream hierarchy


      Constructor                         Throws
      ----------------------------------  ----------------------
      DataOutputStream(OutputStream)      None

      BufferedOutputStream(OutputStream)  None

      FileOutputStream(File
          [, booleanAppend])              FileNotFoundException

      FileOutputStream(StringPathName
          [, booleanAppend])              FileNotFoundException





6. DataOutputStream, writing binary data

• Construct java.io.BufferedOutputStream object

• Assign it to OutputStream

• Opening a file with a buffer:

  • FileOutputStream must be instantiated first, and the constructor requires a File object or a file name.

  • BufferedOutputSream object must be instantiated. The constructor requires the FileOutputStream object.

  • DataOutputStream object must be instantiated. Its constructor takes the BufferedOutputStream object.


      DataOutputStream out =
          new DataOutputStream(
          new BufferedOutputStream(
          new FileOutputStream("books.bin")));



• Note that DataOutputStream implements the DataOutput interface.



7. DataOutputStream: opening binary file for appending

•
      DataOutputStream out =
          new DataOutputStream(
          new BufferedOutputStream(
          new FileOutputStream("data.bin", true)));





8. Console output: writing byte array using OutputStream

• System.out is a PrintStream object

• System.err is another PrintStream object reserved for error messages

• Example using OutputStream to print on the console screen:

9. DataOutputStream implements DataOutput interface

• Common methods of the DataOutput interface:


      Method                  Throws
      ----------------------  -------------
      writeBoolean(boolean)   IOException
      writeInt(int)           IOException
      writeDouble(double)     IOException
      writeChar(int)          IOException
      writeChars(String)      IOException
      writeUTF(String)        IOException





10. DataOutputStream methods

• Methods of the DataOutputStream class:


      Method    Throws
      --------  -------------
      size()    None
      flush()   IOException
      close()   IOException



• size() returns total number of bytes written to the data output stream so far



11. DataOutputStream, writing binary file

• Code that writes data to a binary file


      DataOutputStream out =
          new DataOutputStream(
          new BufferedOutputStream(
          new FileOutputStream("books.bin")));

      // write a Book object to the file
      out.writeUTF(book.getCode());
      out.writeUTF(book.getDescription());
      out.writeDouble(book.getPrice());

      // flush data to the file and close the output stream
      out.close();





12. InputStream hierarchy, raw byte streams

13. DataInputStream, InputStream hierarchy

• Class java.io.DataInputStream

  • defined in the java.io.InputStream class hierarchy

  • DataInputStream implements DataInput interface

• Attaching a binary input stream to a file involves

      DataInputStream     reads data from the stream
      BufferedInputStream creates a buffer for the stream
      FileInputStream     connects the stream to the file




14. InputStream hierarchy constructors

• Constructors of the classes in the InputStream hierarchy


      Constructor                         Throws
      ---------------------------------   ----------------------
      DataInputStream(InputStream)        None
      BufferedInputStream(InputStream)    None
      FileInputStream(File)               FileNotFoundException
      FileInputStream(StringPathName)     FileNotFoundException





15. DataInputStream, binary input stream

• Attaching a binary input stream to a file

  • The FileInputStream object must be instantiated first, its constructor requires a File object or a file name.

  • The BufferedInputStream object must be instantiated next, its constructor taking the FileInputStream object.

  • The DataInputStream is instantiated, its constructor taking the BufferedInputStream object


      DataInputStream in =
          new DataInputStream(
          new BufferedInputStream(
          new FileInputStream("myfile.dat")));



• Note that the DataInputStream implements the DataInput interface



16. DataInputStream implements DataInput interface

• Common methods of the DataInput interface


      Method          Throws
      --------------  ---------------
      readBoolean()   EOFException
      readInt()       EOFException
      readDouble()    EOFException
      readChar()      EOFException
      readUTF()       EOFException
      skipBytes(int)  EOFException





17. DataInputStream methods

• Common methods of the DataInputStream class


      Method        Throws
      ------------  -------------
      available()   IOException
      close()       IOException





18. DataInputStream example: reading binary file

• Code that reads Book objects from a binary file


      DataInputStream in =
          new DataInputStream(
          new BufferedInputStream(
          new FileInputStream("myfile.dat")));

      while (in.available() > 0)
      {
          // read book data from a file
          String code = in.readUTF();
          String description = in.readUTF();
          double price = in.readDouble();

          // create the Book object from its data
          Book p = new Book(code, description, price);
      }

      // close the input stream
      in.close();





19. DataOutputStream: writing binary strings

• There are two ways to read/write binary strings, which results in data stored in two different formats:

  1. writeUTF() writes memory block that takes up two bytes for each character

  2. writeChars() stores strings in Universal Text format (UTF):

     • first two bytes contain the length of the String

     • followed by each character stored in a single byte



20. DataOutputStream example: two ways to write a binary string

•
  import java.nio.file.*;
  import java.io.*;

  public class UnicodeOutput
  {
      public static void main(String[] args)
      {
          try {
              DataOutputStream out =
                  new DataOutputStream(
                  new BufferedOutputStream(
                  new FileOutputStream("books.bin")));

              // create a test string
              String testString = "This is a test string.\n";

              // use the writeUTF method
              out.writeUTF(testString);
              int writeSize1 = out.size();
              System.out.println(
                  "writeUTF writes " + writeSize1 + " bytes.");

              // use the writeChars method
              out.writeChars(testString);
              int writeSize2 = out.size() - writeSize1;
              System.out.println(
                  "writeChars writes " + writeSize2 + " bytes.\n");

              out.close();
          } catch ( IOException ex ) {
              ex.printStackTrace();
          }
      }
  }//class UnicodeOutput



• Resulting output


      writeUTF writes 25 bytes.
      writeChars writes 46 bytes.





21. DataInputStream example: two ways to read a binary string

•
  import java.nio.file.*;
  import java.io.*;

  public class UnicodeInput
  {
      public static void main(String[] args)
      {
          try {
              DataInputStream in =
                  new DataInputStream(
                  new BufferedInputStream(
                  new FileInputStream("myfile.dat")));

              // get total bytes
              int totalBytes = in.available();

              // use the readUTF method
              String string1 = in.readUTF();
              int readSize1 = totalBytes - in.available();
              System.out.println("readUTF reads " + readSize1 +
                  " bytes.");

              // use the readChar method
              int readSize2 = 0;
              String string2 = "";
              int charCount = in.available() / 2;
              for (int i = 0; i < charCount; i++)
              {
                  string2 += in.readChar();
                  readSize2 += 2;
              }
              System.out.println("readChar reads " + readSize2 +
                  " bytes.\n");
          } catch ( IOException ex ) {
          }
      }
  }//class UnicodeInput



• Resulting output from the binary strings


      readUTF reads 25 bytes.
      readChar reads 46 bytes.





22. Creating writeable file with Files.newOutputStream( ) method

• The Files.newOutputStream() method

  • creates a writeable file if it does not already exist

  • opens the file for writing

  • returns an OutputStream that can be used to write bytes to the file

  • newOutputStream() arguments

    • Path

    • StandardOpenOption constant (see next slide)



23. StandardOpenOption constants

• Enum java.nio.file.StandardOpenOption provides modes for file opening:

  • APPEND -- if the file is opened for WRITE access then bytes will be written to the end of the file rather than the beginning.

  • CREATE -- create a new file if it does not exist.

  • CREATE_NEW -- create a new file, failing if the file already exists.

  • DELETE_ON_CLOSE -- delete on close.

  • DSYNC -- requires that every update to the file's content be written synchronously to the underlying storage device.

  • READ -- open for read access.

  • SPARSE -- sparse file.

  • SYNC -- requires that every update to the file content or metadata be written synchronously to the underlying storage device.

  • TRUNCATE_EXISTING -- if the file already exists and it is opened for WRITE access, then its length is truncated to 0.

  • WRITE -- open for write access.



24. Example: BufferedOutputStream, Files.newOutputStream( )

• Class java.io.BufferedOutputStream implements buffered output stream for writing raw bytes.


  import java.nio.file.*;
  import java.io.*;
  import static java.nio.file.StandardOpenOption.*;
  public class FileOut
  {
      public static void main(String[] args)
      {
          Path file =
              Paths.get("C:\\example\\Grades.txt");
          String s = "ABCDF";
          byte[] data = s.getBytes();
          OutputStream output = null;
          try
          {
              output = new
                  BufferedOutputStream(Files.newOutputStream(file, CREATE));
              output.write(data);
              output.flush();
              output.close();
          }
          catch(Exception e)
          {
              System.out.println("Message: " + e);
          }
      }
  }//class FileOut
