Integers are stored precisely. If the size of an integer is larger than
the space allowed, an error will occur (the compiler may not tell you - you will
just get strange output.)
-
If you are working with numbers that have a fractional component (or if in a rare occasion
we are using integers that don't fit a long data type) then we can use
floating point numbers.
-
For floating point numbers, if the number of significant digits is larger than
the number of bits available, the number is simply rounded to the closest value
that can be represented.
-
This means that number may not be stored exactly. However, this loss of precision
is often not a problem. We refer to the error as roundoff-error.
-
Floating point numbers (i.e. numbers with a decimal point) are represented using

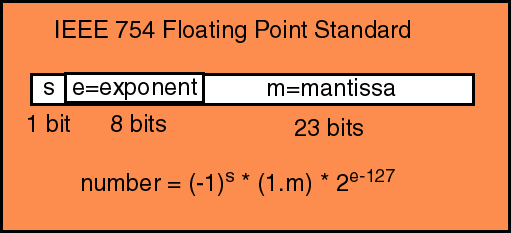

what is called the IEEE format. C++ float data type stores a single precision number in 32 bits as follows:
-
The IEEE standard designates bits to compute the floating point numbers using the formula
sign * 2^exponent * mantissa
-
where exponent and mantissa are computed as
exponent = e - 127
mantissa = 1.m
-
We need to fill in the sign, exponent, and mantissa in
sign * 2^exponent * mantissa
where exponent and mantissa are computed as
exponent = e - 127 ( 8 bits )
mantissa = 1.m ( 23 bits ) ( 1 is not stored because it's not needed)
-
The dot is called the radix point. From left to right, binary digits of
mantissa represent combinations the of following base-2 fractions:
1/2 = 0.5
1/4 = 0.25
1/8 = 0.125
1/16 = 0.0625
1/32 = 0.03125
1/64 = 0.015625
1/128 = 0.0078125
... ...
-
For example,
3.75 = 3 + 0.5 + 0.25 = 11.11 = 1.111 * (2^1)
sign = 0 exponent = 10000000 ( 8 bits ) mantissa = 111000...00 ( 23 bits )
-
Note: fractions that can be fully assempled from base-2 fractions listed above are
called dyadic fractions.
-
To compute mantissa (binary equivalent of fractional part after the radix point)
of a non-dyadic fraction, such as 3.14, execute a series of 23 steps
multiplying the decimal fractional part .14 number by 2.
Integral part of resultant decimal numbers are the digits we use in binary mantissa,
from left to right:
3.14 = 3 + 0.28 + 0.56 + 1.12 + 0.24 + 0.48 + 0.96 + 1.92 + 1.84 + 1.68 + 1.36 + 0.72 + 1.44
0 0 1 0 0 0 1 1 1 1 0 1
11. 001000111101...
\____m________/ 23 bits
-
Binary fraction such as 11.001000111101 needs to be normalized.
In normalized version of the binary fraction the integral part is always 1.
11.001000111101 =
1.1001000111101 * (2^1)
sign = 0 (+)
exponent = 127 + 1 = 10000000 ( 8 bits )
mantissa = 1001000111101... ( 23 bits )
-
When normalizing, we have to adjust the radix point to the <-left or to the right->
by using positive and negative exponent, respectively:
... ...
2^-2 : e = 127 - 2 = 125
2^-1 : e = 127 - 1 = 126 negative power moves radix point to the right->
2^0 : e = 127 + 0 = 127
2^+1 : e = 127 + 1 = 128 positive power moves radix point to the <-left
2^+2 : e = 127 + 2 = 129
... ...
