Diffuse lighting is also known as Lambertian reflectance

Lambertian diffuse reflection model proposes a formula to compute the intensity of the reflected light.

Lambertian model is good for rough surfaces without specular highlights.

The model assumes that the light falling on a surface appears the same regardless of the observer's viewpoint.

                L·N
    cos(a) = _________
               |L||N|

• Please note that lighting direction L is from the surface towards the light.

• The angle between the surface normal and the light source vector is called the angle of incidence of the light

L – the incoming light vector

N – the normal of the plane/vertex

If vectors L and N are normalised, cos(a) is the dot product:

• cos(a) = L·N

The diffuse intensity Id is computed by adding the diffuse component of the object's material, Kd:

• Id = Kd * L·N

In practice, we need to avoid negative L·N values:

• Id = Kd * max( L·N, 0 )

Also, we can now easily add ambient light Ia to the result:

• Id = max(
           Kd * max( L·N, 0 ),
           Ia
          )

where Ia is the ambient light intensity.

L – the incoming light vector

N – the normal of the plane/vertex

Vertex shader

#version 130

in vec4 s_vPosition;
in vec4 s_vNormal;

uniform mat4 mM;    // model matrix
uniform mat4 mV;    // camera view matrix
uniform mat4 mP;    // perspective matrix

uniform mat4 mRotations; // all model rotations matrix

uniform vec4 vLight; // direction of light

smooth out vec4 interpolated_color;

void main () {

    // Rotate the normal and use as vec3:
    // No need tp normalize after rotation since it remains a unit vector:
    vec3 normal_in_cam_space = (mRotations*s_vNormal).xyz;
    // The angle between the surface normal and the light source vector
    // is called the angle of incidence of the light:
    float cos_incidence = dot( normal_in_cam_space, vLight.xyz );
    // Note that cosine of the angle of incidence can become negative
    // for angles greater than 90 degrees, hence we use the clamp() to
    // keep it in range from zero to one:
	cos_incidence = clamp( cos_incidence, 0, 1 );
    vec4 light_color = vec4( 1.0, 1.0, 0.0, 1.0 ); // R + G = yellow
    interpolated_color = vec4( light_color.rgb * cos_incidence, 1.0);

    gl_Position = mP*mV*mM*s_vPosition;
}

Fragment shader

#version 130

smooth in vec4 interpolated_color;

out vec4 fColor;

void main()
{
	fColor = interpolated_color;
}

Vertex shader

#version 130

in vec4 s_vPosition;
in vec4 s_vNormal;

uniform mat4 mM;    // model matrix
uniform mat4 mV;    // camera view matrix
uniform mat4 mP;    // perspective matrix

uniform mat4 mRotations; // all model rotations matrix

uniform vec4 vLight; // direction of light

out vec3 fN; // output of the normal
out vec3 fL; // output of light vector

void main () {

    // Rotate the normal and pass on as vec3
    fN = (mRotations*s_vNormal).xyz;
    fL = vLight.xyz;

    // From local, to world, to camera, to NDCs
    gl_Position = mP*mV*mM*s_vPosition;
}

Fragment shader

#version 130

in vec3 fN;
in vec3 fL;

out vec4 fColor;

void main () {
    // NOTE: We ALWAYS need to normalize the vectors after interpolation!
    vec3 N = normalize(fN);
    vec3 L = normalize(fL);
    float diffuse_intensity = max(dot(N, L), 0.0);
    vec4 light_color = vec4( 1.0, 1.0, 0.0, 1.0); // R + G = yellow
    fColor = light_color * diffuse_intensity; // yellow diffuse light
}

Blinn-Phong shading model is based on lighting calculation per pixel, so it has to be implemented in the fragment shader.

The specular light is based on the half-vector.

According to the model, the intensity of specular light component is based on the cosine of the angle between the half vector and the normal.

The intensity of the specular light Is is

• Is = ( N·H )^shininess

where H is the half-vector

In practice, GLSL formula becomes

  float Is = pow( max( dot( N, H ), 0.0), shininess );

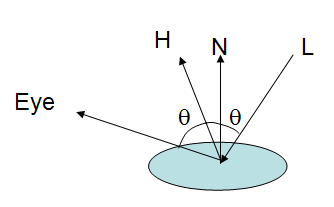

Blinn-Phong light model is based on the half-vector:

L – the incoming light vector

N – the normal of the plane/pixel

E – the vector from the pixel to the camera

H – the half-vector: H = L + -E

shininess close to 1

shininess 30

shininess 255

Vertex shader:

#version 130

in vec4 s_vPosition;
in vec4 s_vNormal;

uniform mat4 mM;    // model matrix
uniform mat4 mV;    // camera view matrix
uniform mat4 mP;    // perspective matrix

uniform mat4 mRotations; // all model rotations matrix

uniform vec4 vLight; // direction of light

out vec3 fN; // output of the normal
out vec3 fL; // output of light vector
out vec3 fE; // vector between the camera and a vertex

void main () {

    // Rotate the normal and pass on as vec3
    fN = (mRotations*s_vNormal).xyz;
    fL = vLight.xyz;
    // vertex is relative to the camera:
    fE = (mV*mM*s_vPosition).xyz;

    // From local, to world, to camera, to NDCs
    gl_Position = mP*mV*mM*s_vPosition;
}

Fragment shader:

#version 130

in vec3 fN;
in vec3 fL;
in vec3 fE; // interpolated from the vertex shader

out vec4 fColor;

void main () {
    // ALWAYS normalize the vectors after interpolation:
    vec3 N = normalize(fN);
    vec3 L = normalize(fL);
    // Reverse E: becomes vector from pixel to camera:
    vec3 E = normalize(-fE);
    vec3 H = normalize( L + E ); // Create the half vector

    float diffuse_intensity = max(dot(N, L), 0.0);
    vec4 diffuse_color = vec4( 0.5, 0.2, 0.0, 1.0 ); // dark orange
    diffuse_color = diffuse_color * diffuse_intensity;

    float shininess = 30.0;
    float specular_intensity = pow(max(dot(N, H), 0.0), shininess);
    vec4 specular_color = vec4( 0.9, 0.1, 0.1, 1.0 ); // red
    specular_color = specular_intensity * specular_color;
    //fColor = diffuse_color; // only diffuse light
    //fColor = specular_color; // only specular light

    // dark orange with bright specular red:
    fColor = diffuse_color + specular_color;
}
